MYC-C7Z010/20-V2 CPU Module

The MYC-C7Z010/20-V2 CPU Module is a high-performance, Linux-ready System-on-Module (SoM) based on the Xilinx Zynq-7010/7020. Featuring a dual-core ARM Cortex-A9 processor and integrated Artix-7 FPGA, it includes 1GB DDR3, 4GB eMMC, and 32MB QSPI Flash memory. With a range of I/O options and two 140-pin expansion connectors, it is ideal for embedded applications in industrial automation, test & measurement, and medical equipment..

  • Detail
  • Special Features
  • Specification

The MYC-C7Z010/20-V2 CPU Module is designed for high-performance embedded systems, featuring the Xilinx Zynq-7010 or Zynq-7020 SoC. It integrates a dual-core ARM Cortex-A9 processor and an Artix-7 FPGA, offering a versatile platform for a wide range of applications. The module includes 1GB DDR3 memory, 4GB eMMC storage, and 32MB QSPI Flash, providing ample storage and memory for demanding embedded tasks. The two 140-pin expansion connectors provide flexibility for connecting external devices and peripherals, including Gigabit Ethernet, USB, and serial interfaces, making it ideal for industrial control systems, test & measurement devices, and other applications. It also supports PetaLinux and comes with a full software development suite, making it easy for developers to start prototyping.

  • Processor: Xilinx Zynq-7010 (XC7Z010) or Zynq-7020 (XC7Z020)

    • Dual-core ARM Cortex-A9 processor (up to 866MHz)

    • Integrated Artix-7 FPGA

    • NEON & Single/Double Precision Floating Point

  • Memory:

    • 1GB DDR3 SDRAM (2 x 512MB)

    • 4GB eMMC storage

    • 32MB QSPI Flash

  • I/O Expansion:

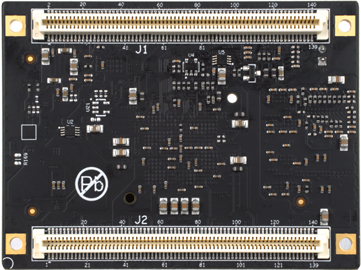

    • Two 0.8mm pitch 140-pin board-to-board expansion connectors

    • Gigabit Ethernet, USB OTG, Serial ports, I2C, CAN

    • SPI, ADC, SDIO

  • Peripherals:

    • External Watchdog

    • Three LEDs for power and status indicators

  • OS Support: Linux 5.4.0

  • Power Supply: 5V/0.5A

  • Processor:

    • Xilinx Zynq-7010 (XC7Z010) or Zynq-7020 (XC7Z020)

    • Dual-core ARM Cortex-A9, up to 866MHz

    • Integrated Artix-7 FPGA

    • NEON & Floating Point

  • Memory:

    • 1GB DDR3 SDRAM

    • 4GB eMMC Storage

    • 32MB QSPI Flash

  • Peripherals:

    • Gigabit Ethernet PHY

    • USB OTG 2.0

    • Serial Ports, I2C, CAN

    • ADC, SPI, SDIO

  • Power Supply: 5V/0.5A

  • Expansion:

    • Two 140-pin board-to-board connectors

    • Multiple I/O signals (GPIO, UART, CAN)

  • OS Support: Linux 5.4.0
